Used in offices, hospitals, schools and other places to meet lighting needs and achieve decorative functions
Export quality
Professional design
Self-developed products
Worry-free after-sales
Features:

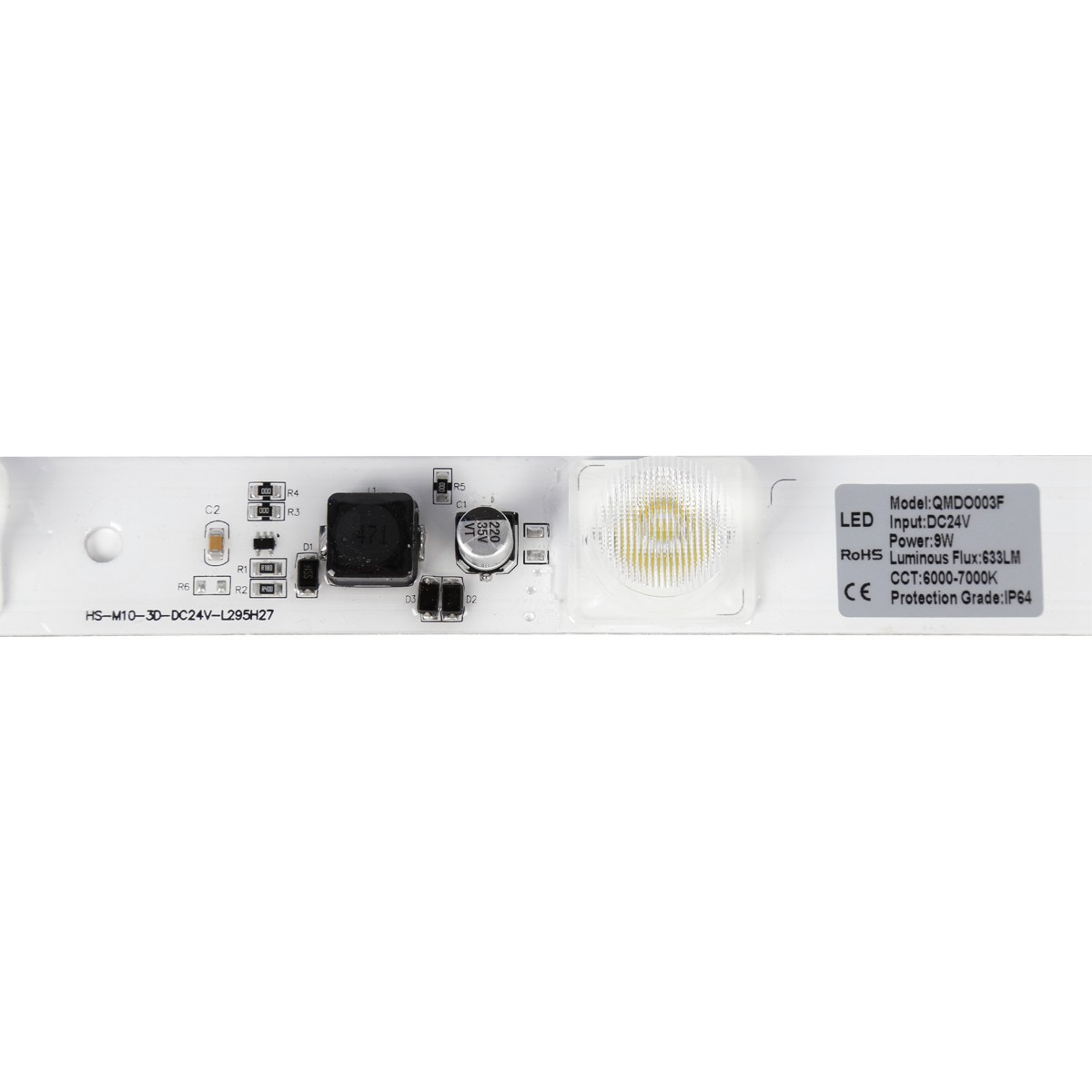

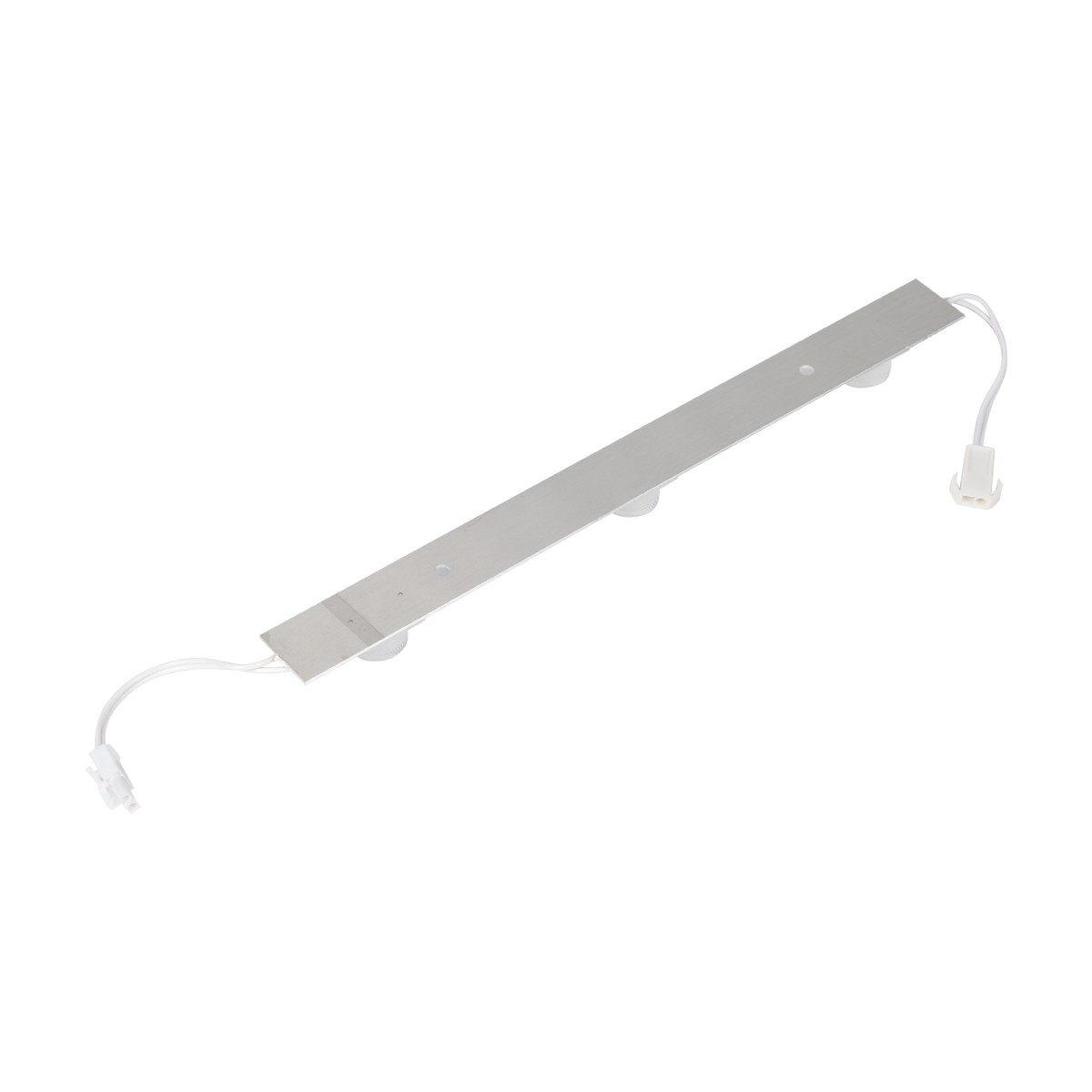

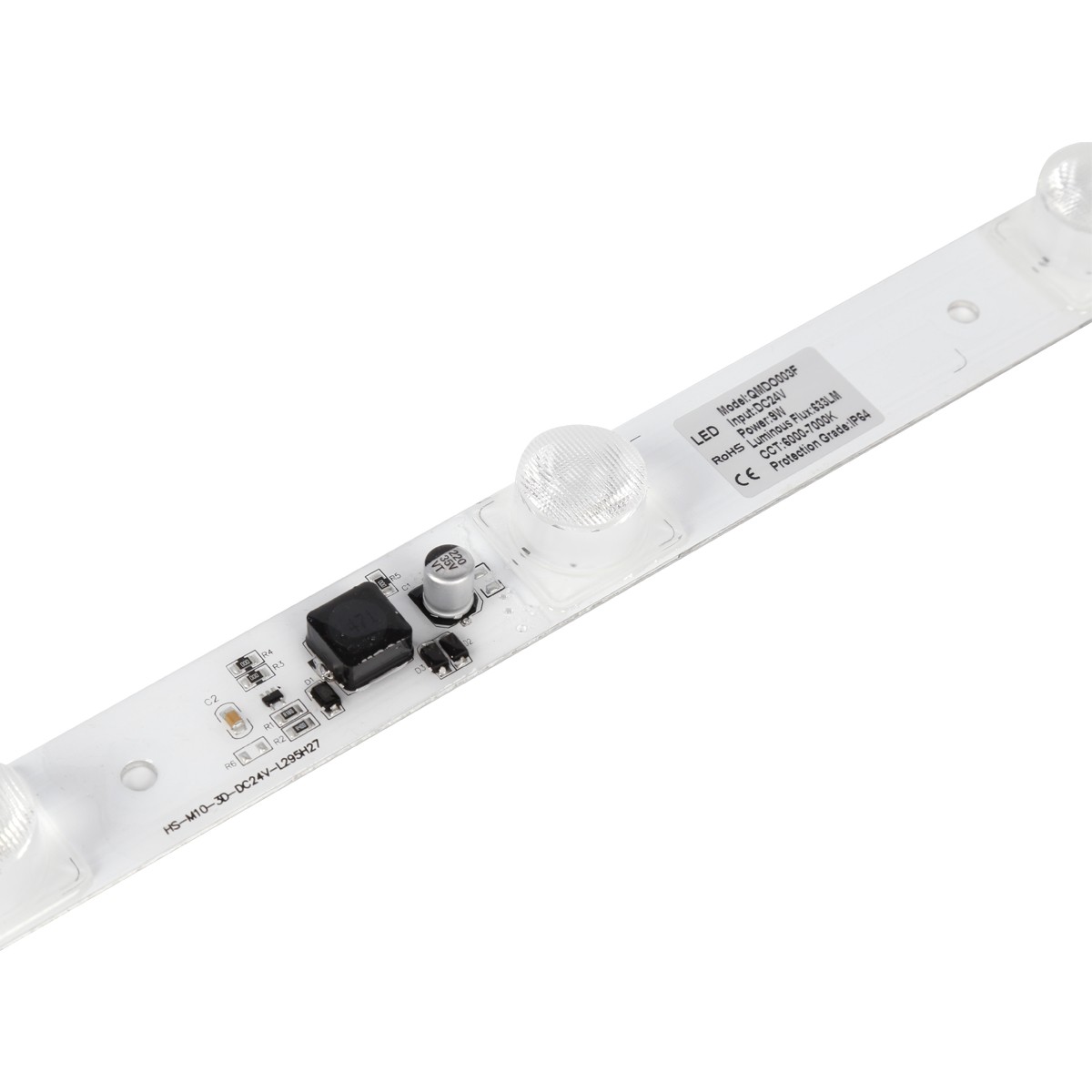

CREE lamp beads side-emitting light box light bar, parts are glue-proof
Water, waterproof grade IP43; both ends of the light bar can be powered, but
Continuous connection, both ends of the terminal line to the connector, easy to install; side light
The source is mainly placed on both sides of the light box profile, and the canvas is on the side
Illuminate to achieve the double-sided bright light effect (different lamps can be selected
Bar size matching).
| Date | 2021-7-31 |
| Quantity | 3 beads |
| Lamp name | LED light box light bar |
| Specification model | qmd-dxdt-3535-3d-295-w-24v |
| Lamp brand | Qimingda |
| Application location | Customer's choice |
| Installation method | Light box frame installation |
light source | |
| Light effect | 120-130LM/W |
| Color temperature | 2700-6500K optional |
| Power source | 3-5W |
| Light source brand | CREE |
| Light source type/specification | SMD3535 |
Lamps and electrical appliances | |
| Pixel segment | Stretching Aluminum |
| Protection level | IP43 |
| Input voltage | DC24V |
| Power factor | 90 |
| Hole Size | 295*27*2.0MM |
| Beam angle/lens | 60 degrees/10*45 degrees |
| Shade material/color | / |
| Light body material/color | PCB aluminum substrate |
| Electrical appliances/specifications/installation methods | Light box frame installation |
| Power (number of light sources x light source power) | 9W |
| Lamp life (system is not a single light source) | 50000h |
LED side light source light bar, high power 24V billboard, bus station, large shopping mall, LED lig
High-power rag light box LED rigid light bar 3535 advertising light box lighting led light box light
Side lighting LED pull cloth light box hard light bar 3 lights LED high power 3535 high bright light
