Used in offices, hospitals, schools and other places to meet lighting needs and achieve decorative functions
Export quality
Professional design
Self-developed products
Worry-free after-sales
Features:

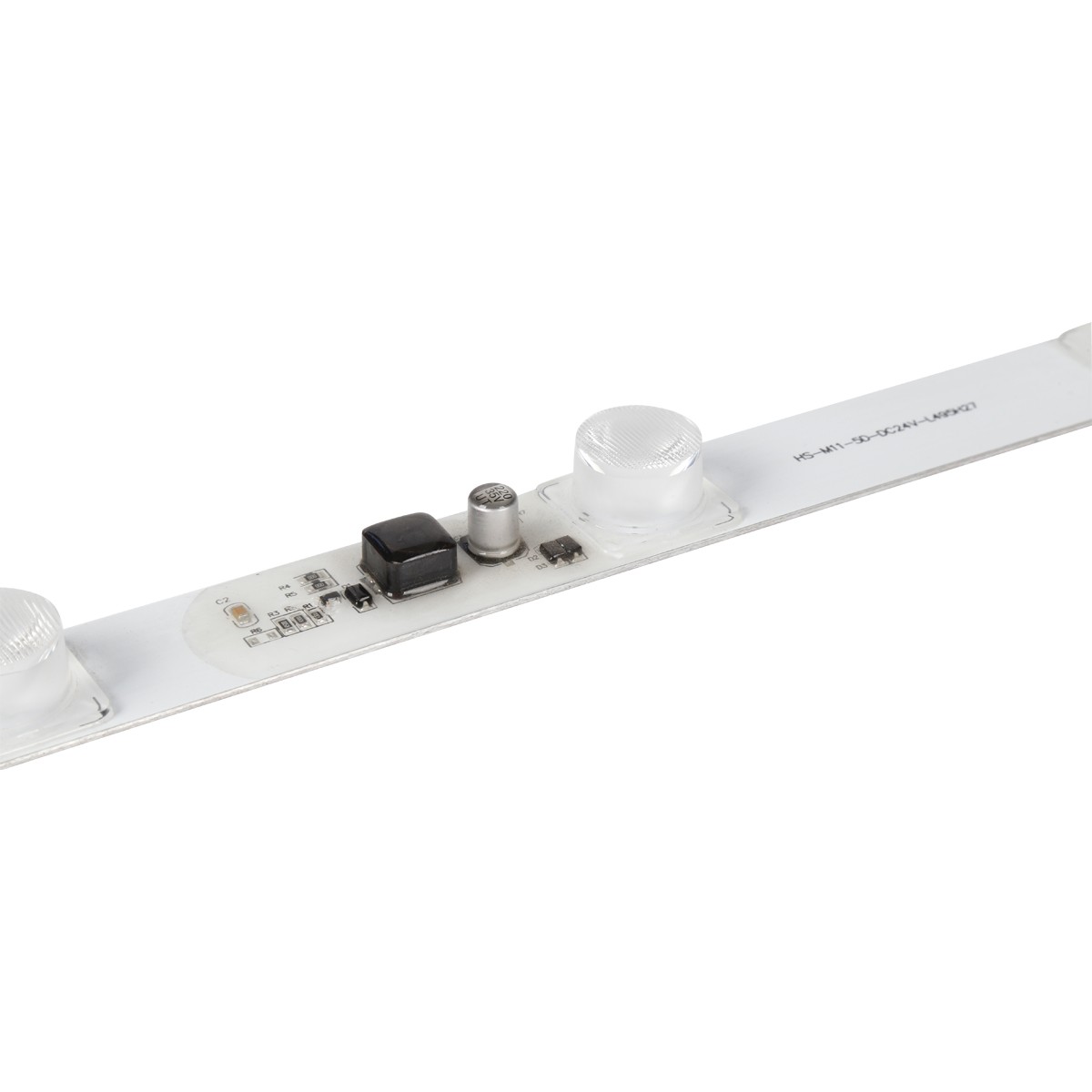

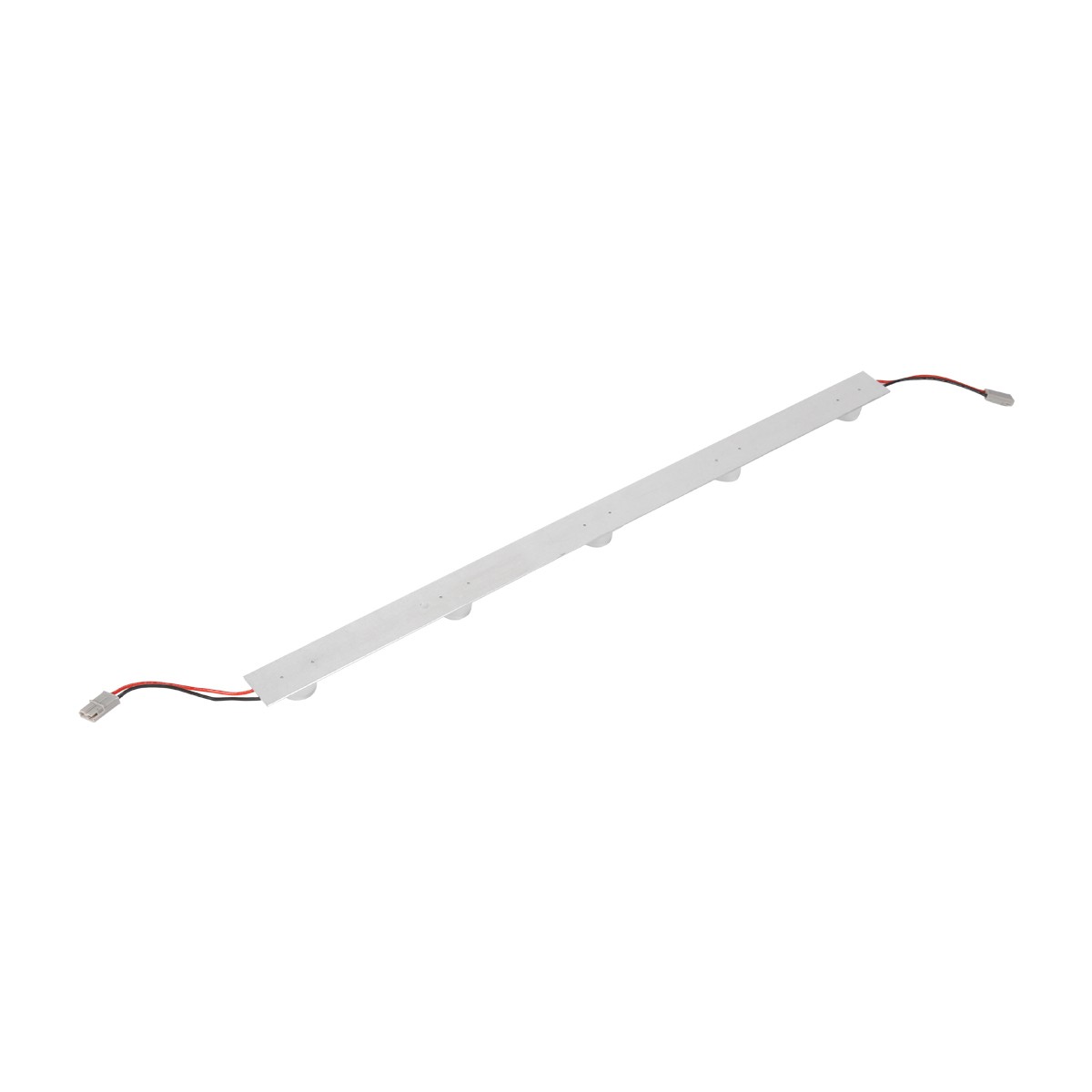

Side-emitting LED light box light bar, parts epoxy waterproof, waterproof grade IP43; CREE lamp bead patch, high-brightness chip, high brightness, energy-saving and power-saving; the lens light effect is restored with a large luminous angle, a long range distance, and a more uniform luminescence; Both ends of the light bar can be powered and can be connected continuously, and the terminals at both ends are line-to-head for easy installation.
| Date | 2021-7-31 |
| Quantity | 5 lights |
| Lamp name | LED light box light bar |
| Specification model | qmd-dxdt-3535-5d-495-w-24v |
| Lamp brand | Qimingda |
| Application location | Customer's choice |
| Installation method | Light box frame installation |
light source | |
| Light effect | 120-130LM/W |
| Color temperature | 2700-6500K optional |
| Power source | 3-5W |
| Light source brand | CREE |
| Light source type/specification | SMD3535 |
Lamps and electrical appliances | |
| Protection level | IP43 |
| Input voltage | DC24V |
| Power factor | 90 |
| Hole Size | 495*27*2.0MM |
| Beam angle/lens | 60 degrees/10*45 degrees |
| Shade material/color | / |
| Light body material/color | PCB aluminum substrate |
| Power (number of light sources x light source power) | 15W |
| Lamp life (system is not a single light source) | 50000h |
