Aluminum profile, high-quality surface treatment, black, white, and silver color selection.
High luminous efficiency design, luminous efficiency up to 125 LM/W.
Five standard corners (L-shaped, X-shaped, T-shaped) are optional, to achieve three-dimensional and planar Free splicing, a
variety of light distribution options (diffusion, prism, grid 12°, grid 24°, grid 38°, single polarized light, double polarized light) to meet the needs of a variety of scenes
| Lamp parameters | ||

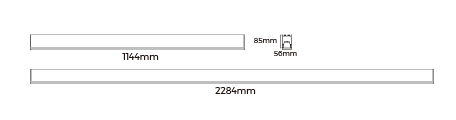

| size | L1144*W56*H85mm | L2284*W56*H85mm |
| Optics | Grating | |
| Shell material | PC | |
| lumen | 2470LM | 4950LM |
| Typical power | 28W | 53W |
| Color temperature | 2700K/3000K/4000K/6500K | |
| Color rendering index | 80 (90 optional) | |
| Beam angle | 12°, 24°, 38° | |
| Input voltage | AC200-240V | |
| Dimming | 0-10V Dimming | |
| colour | White /Black/Silver | |
| Install | Pendant/Surface Mounted | |
| Warranty | 5 years | |
| Certification | / | |
| Protection level | IP20 | |
